Diamond Stat™ 826 Notrax electro static discharge mats
Art. no: 826
Please share this article with others
Copy this link. After this you can paste and share it.
Product description
Conductive/anti-static mat to absorb and drain static electricity from the worker
Quickly go to
Overview
Product features
- Featured with RedStop™ slip resistant backing to prevent mats from shifting
- UniFusion™ technology, engineered to resist in the harshest work environments
- Diamond deck plate surface provides traction and allows easy twist turns
- Equipped with 10 mm female socket attached to the mat and grounding cord
- Bevelled edges on all four sides to minimize the risk of tripping
- IEC61340-4-1 (category DIF) resistance Rp 10⁶ - 10⁹ Ω
Product description

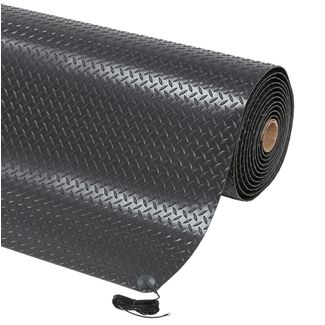

Diamond Stat™ is a conductive/anti-static mat designed to absorb static electricity. The mat drains static electricity from the worker keeping sensitive circuitry from being damaged. The durable vinyl diamond-plate design provides non-directional traction and is easy to clean. Diamond Stat™ top surface is combined with a rubber foam base utilizing Notrax® exclusive UniFusion™ technology. This virtually eliminates the possibility of de-lamination. Ergonomic fatigue-reducing rubber foam base that provides superior comfort and support eliminates the slipping and sliding of floor mats on smooth surface flooring such as vinyl composite tile, painted or epoxy coated concrete, vinyl sheet flooring, carpet, and ceramic tile.
Documentation & Video
- notrax-826-diamond-stat-elektrostatische-entladung-matten-specification-de-122533
- notrax-826-diamond-stat-electro-static-discharge-mats-specification-en-122534
- notrax-826-diamond-stat-esterillas-descarga-electroest-tica-specification-es-122535
- notrax-826-diamond-stat-tapis-dissipant-lectricit-specification-fr-122536
- notrax-826-diamond-stat-tappeti-antistatici-specification-it-122537
- notrax-826-diamond-stat-elektrostatisch-ontladende-matten-specification-nl-122538
- notrax-826-diamond-stat-tapetes-antiest-ticos-specification-pt-122539
Technical Specifications
General specifications
| Application | Industrial Environments |
|---|---|
| Backing | Closed Cell Polyvinylchloride |
| Chemical Resistance | Cat. V PVC |
| Edges | Beveled edges on all sides |
| High Hazard Seismic Zone | No |
| Material | PVC |
| Material Group | PVC |
| Process | Lamination |
Test results
| Fire rating EU | En 13501-1 Cfl-S1 |
|---|
